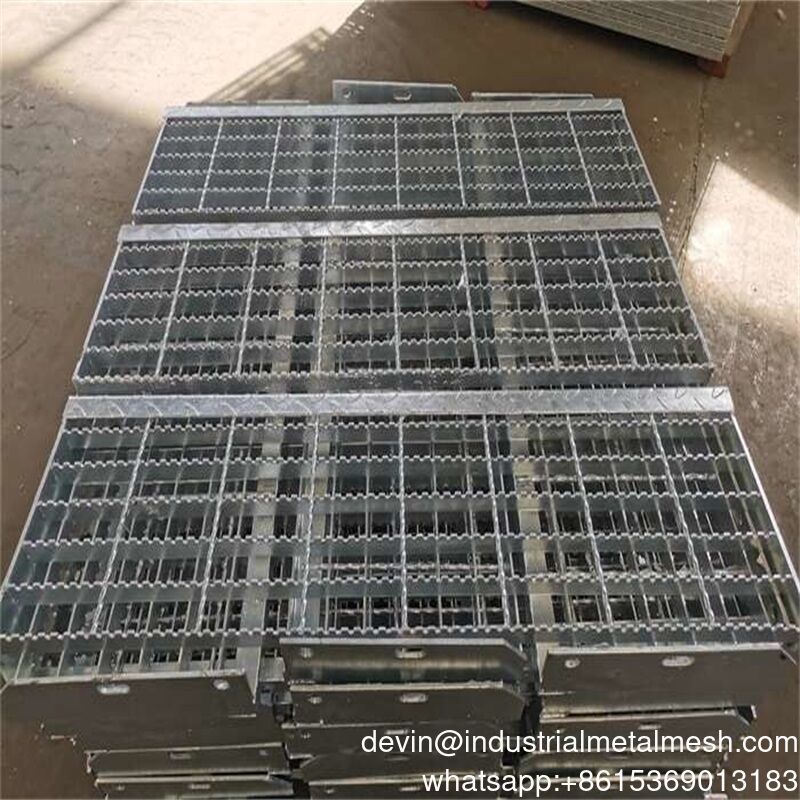

Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating

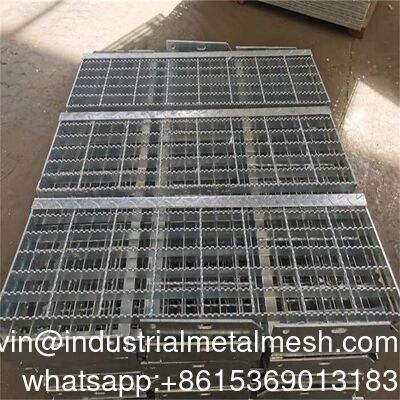

Ampliación de imagen : Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Dimpled Hole Metal Sheets
Número de modelo:	Hojas de metal con hoyos

Pago y Envío Términos:

Cantidad de orden mínima:	10 piezas
Detalles de empaquetado:	Palets
Tiempo de entrega:	15-18 días
Condiciones de pago:	30% TT por adelantado, saldo antes de la carga
Capacidad de la fuente:	1000 piezas

Contacto

Descripción detallada del producto

Composición química:	FE, C, Si, manganeso, S, P	Aleación o no:	Sin aleación
Capacidad de solución de proyectos:	diseño gráfico, diseño de modelos 3D, solución total para proyectos.	Solicitud:	Villa
Tratamiento superficial:	Galvanización en baño caliente, pintando o no tratado	Longitud de la rejilla:	1000 mm
Anchura de la rejilla:	800 mm	Llevar grueso de la anchura x de la barra:	25x3m m
Llevar forma de barra:	Claramente, tipo serrado reja de acero de la barra de I del estilo	Forma de barra cruzada:	redondo, torcido, forma de barra
Tamaño de malla:	30x100m m	Correo electrónico:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Resaltar:	galvanized steel grating with serrated surface , heavy duty metal grating supplier , custom galvanization coat steel grating

Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating

Galvanized Steel Grating

Our bar steel grating panels are manufactured in mild steel or stainless steel (AISI 304 or AISI 316). It is our standard practice to get mild steel bar grating panels hot dip galvanized to significantly increase their corrosion resistance, and on demand a polyester powder coated finish in any RAL color is also available as an option, which can allow the introduction of color in order to blend with the local environment. However our stainless steel (AISI 304 or AISI 316) panels are usually supplied in mill finish due to their inherent excellent corrosion resistance.

Our bar steel grating panels are very versatile and are used in many industries, such as commercial and residential areas, school buildings, industrial facilities, and airports.

To help you have some knowledge of our metal bar steel grating panels, we hereby show some pictures below for your information.

Specification

Learn more about the main components of metal bar grating
Material	Carbon Steel , Stainless Steel
surface treatment	Hot dip galvanizing,Painting,Spray coating,self colour
Product Process	Fully automatic pressure welding , manual welding
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
Steel Grade	ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST
Russian Standard
Common spacing of load-bearing flat steel:	11, 22, 33, 44
Common spacing for connecting flat steel:	11, 22, 33, 66
Surface treatment	Plating thickness ≥70 μm
Custom specifications available upon request

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

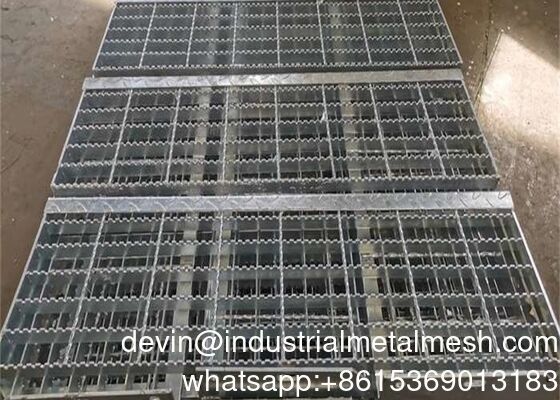

steel grating Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
