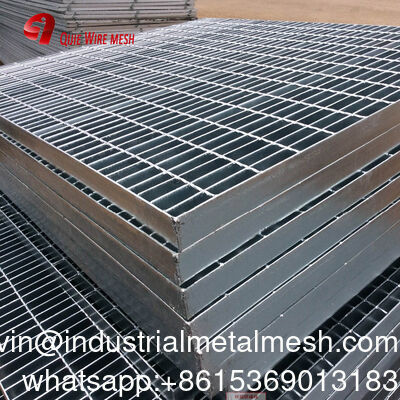

Galvanized 15/20/30/34.3/40/60mm Bearing Bar Pitch Drain Perforated Steel Grating

Ampliación de imagen : Galvanized 15/20/30/34.3/40/60mm Bearing Bar Pitch Drain Perforated Steel Grating

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Dimpled Hole Metal Sheets
Número de modelo:	Hojas de metal con hoyos

Pago y Envío Términos:

Cantidad de orden mínima:	10 piezas
Detalles de empaquetado:	Palets
Tiempo de entrega:	15-18 días
Condiciones de pago:	30% TT por adelantado, saldo antes de la carga
Capacidad de la fuente:	1000 piezas

Contacto

Descripción detallada del producto

Composición química:	FE, C, Si, manganeso, S, P	Aleación o no:	Sin aleación
Capacidad de solución de proyectos:	diseño gráfico, diseño de modelos 3D, solución total para proyectos.	Solicitud:	Villa
Tratamiento superficial:	Galvanización en baño caliente, pintando o no tratado	Longitud de la rejilla:	1000 mm
Anchura de la rejilla:	800 mm	Llevar grueso de la anchura x de la barra:	25x3m m
Llevar forma de barra:	Claramente, tipo serrado reja de acero de la barra de I del estilo	Forma de barra cruzada:	redondo, torcido, forma de barra
Tamaño de malla:	30x100m m	Correo electrónico:	devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Resaltar:	galvanized steel grating bearing bar , perforated steel grating drain pitch , galvanized drain grating 15-60mm

Galvanized 15/20/30/34.3/40/60mm Bearing Bar Pitch Drain Perforated Steel Grating

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

Product Parameters (Technical Specifications)
Parameter	Specification Options	Standard / Notes
Material	Mild Carbon Steel (Q235), Stainless Steel (304, 316), Aluminum	Most common: Carbon steel with galvanizing
Bearing Bar	Flat, Serrated, I-Bar	Serrated for maximum slip resistance
Bearing Bar Thickness	3mm, 4mm, 5mm, 6mm	Custom thicknesses available
Bearing Bar Spacing	30mm, 34.3mm (1-3/16"), 40mm, 41mm	30mm spacing is standard for walkways
Cross Bar Spacing	50mm, 100mm	100mm is most common
Surface Treatment	Hot-Dip Galvanized, Painted, Powder Coated, Black (Ungalvanized)	HDG to ASTM A123 is standard for carbon steel
Panel Standard Size	1000mm x 6000mm, 1000mm x 5000mm, Custom Sizes	Can be cut to your exact dimensions
Load Classes	Standard (15A/15B), Heavy-Duty, Special Duty	According to ANSI/NAAMM MBG 531 or EN ISO 14122
Note: All specifications can be customized. Consult our engineering team for project-specific requirements.

metal walking grates introduction-- galvanized road drainage grates

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted
application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence

bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted

Material	Carbon Steel, Stainless Steel, Aluminum
Surface treatment	Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type	Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)	Cross bar pitch (mm)	Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30	100	WSG_203/253/323/403/205/325/405/455/505/555_30_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_30_50
40	100	WSG_203/253/323/403/205/325/405/455/505/555_40_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_40_50
60	50	WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

Galvanized 15/20/30/34.3/40/60mm Bearing Bar Pitch Drain Perforated Steel Grating 0

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
