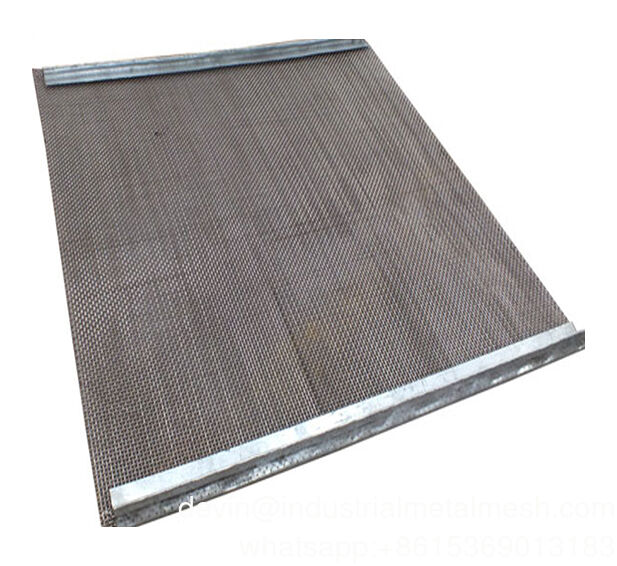

Factory Direct 65mn Mining Vibrating Screen Square Mesh / Crimped Woven Wire Mesh

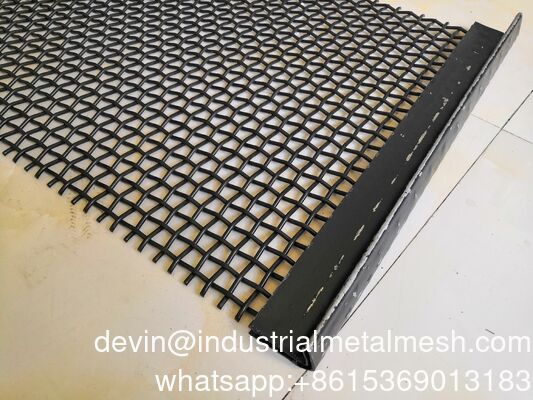

Ampliación de imagen : Factory Direct 65mn Mining Vibrating Screen Square Mesh / Crimped Woven Wire Mesh

Datos del producto:

Lugar de origen:	Hebei, China
Nombre de la marca:	Xmesh
Certificación:	SGS
Número de modelo:	MVSM

Pago y Envío Términos:

Cantidad de orden mínima:	10 piezas
Detalles de empaquetado:	Palets
Tiempo de entrega:	15-25 días
Condiciones de pago:	TT/LC
Capacidad de la fuente:	1000 unidades por mes

Contacto

Descripción detallada del producto

Material:	alambre de acero inoxidable	Tipo:	Malla de alambre prensada
Solicitud:	malla de alambre tejido	Estilo de tejido:	Tejido liso
Técnica:	tejido	Número de modelo:	Malla del tamiz vibratorio
Servicio de procesamiento:	Doblar, SOLDAR, Desenrollar, Cortar, PUNZONAR	Tiempo de entrega:	31-45 días
Tratamiento superficial:	galvanizado o pintado.	Tamaño de malla:	1m m - 100m m.
Tipo de agujero:	ranura cuadrada, rectangular y larga.	tamaño de apertura:	2.0 - 80,0 milímetros
Diámetro del alambre:	0,8 - 8 mm	Ancho:	1,2 m
Longitud:	30m	GANCHO:	gancho con la hoja de acero
grado de gancho:	60Degree	Tipo de tejido:	Encrespadura doble
Correo electrónico:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Resaltar:	65mn mining vibrating screen , square mesh crimped wire , woven wire mesh mining

Factory Direct 65mn Mining Vibrating Screen Square Mesh / Crimped Woven Wire Mesh

Product Description

Our premium woven wire mesh is engineered for precision and durability, making it an ideal solution for a wide range of industrial applications. Manufactured with high-quality materials, this screen mesh ensures accurate separation and filtration in demanding environments. Whether you are working with aggregates, minerals, or construction materials, our mesh provides consistent performance, high tensile strength, and excellent resistance to wear and corrosion.

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Products	65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made)
Feature	65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry.
Material grade	65Mn Steel
Aperture/opening	1.0mm-150mm
Wire diameter	0.5-12.7mm
standard sheet size	1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Weaving type	Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage
Width	width up to 6 meters
Length	length up to 100 meters.
surface finish	Mill finish, Anti-rust oil spraying, PVC coating
Application	Heavy Screening & Sieving Of Coal Mines. Stone Quarry Works Wire Mesh For Pig Breeding Coal Mine Cement Plant The Cement Factory Petroleum Glass Factory Hardware Products
Standards	Material GBT 1222-2016 Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

mine screening mesh

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. mine screen mesh

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

mine screen mesh

Typical Applications:

Mining: Ore extraction, coal washing, and mineral processing.
Quarry & Aggregate: Stone crushing, sand screening, and gravel classification.
Construction: Demolition waste sorting and construction material screening.
Industrial: Chemical processing, grain handling, and waste management. vibrating screen mesh

Aperture
Square WeaveLight duty
Wire Dia kg/m²OA%Medium
Wire Dia kg/m OA%Heavy Duty
Wire Dia kg/m²OA
