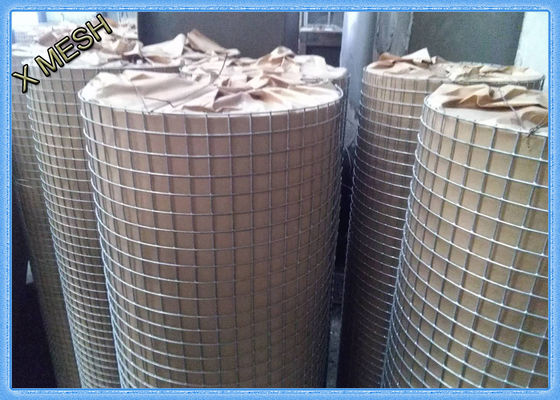

Galvanized Welded Wire Mesh Fence Panels Square Hole Shape Made Of Iron Wire

Ampliación de imagen : Galvanized Welded Wire Mesh Fence Panels Square Hole Shape Made Of Iron Wire

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	QiJie
Certificación:	ISO9001:2008, SGS, CE
Número de modelo:	01WWM

Pago y Envío Términos:

Cantidad de orden mínima:	50 rollos
Precio:	USD9.90-USD45.90
Detalles de empaquetado:	Película plástica o papel resistente al agua.
Tiempo de entrega:	10-25 días
Condiciones de pago:	TT,LC,
Capacidad de la fuente:	1000 rollos/por día

Contacto

Descripción detallada del producto

Material:	alambre de acero al carbono	Apertura de malla:	12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Diámetro del alambre:	0,4 mm - 1,5 mm	Ancho del rollo:	0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Longitud del rollo:	15M, 30M, 50M, etc.	Tratamiento superficial:	Galvanizado por inmersión en caliente o galvanizado eléctrico
Número de modelo:	xx-01001	Solicitud::	Malla de valla
Correo electrónico:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Resaltar:	galvanized welded wire mesh fence , iron wire mesh panels , square hole wire fence

Galvanized Welded Wire Mesh Fence Panels Square Hole Shape Made Of Iron Wire

Product Description:

Construction welded mesh is a durable reinforcing material widely used in buildings, bridges, highways, tunnels, and foundations. Available in cold rolled, hot rolled, galvanized, epoxy coated, stainless steel, and rebar mesh, it offers crack resistance, corrosion protection, quick installation, and cost efficiency, providing reliable reinforcement for various projects.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Opening (In inch)	In metric unit(mm)	Wire Diameter(BWG)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
