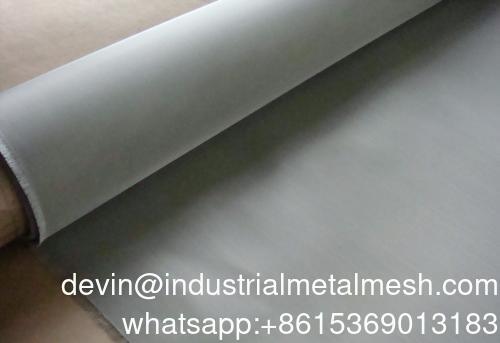

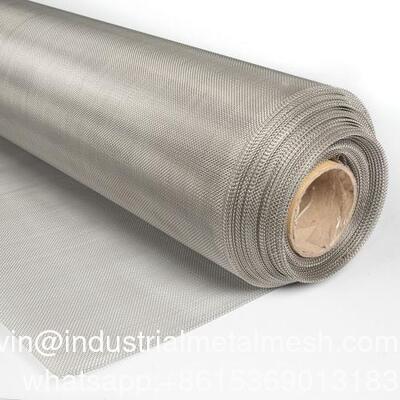

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh

Ampliación de imagen : 20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	QIJIE
Certificación:	ISO9001
Número de modelo:	Se trata de un documento de identificación.

Pago y Envío Términos:

Cantidad de orden mínima:	50 rollos
Precio:	discuss
Detalles de empaquetado:	Como requisito
Tiempo de entrega:	15 - 20 días
Condiciones de pago:	TT/LC
Capacidad de la fuente:	1000 Rolls por semana

Contacto

Descripción detallada del producto

Técnica:	tejido	Material:	Alambre de acero inoxidable, 316,304
Estilo de tejido:	Aclare/armadura de tela cruzada	Nombre del producto:	Harina tejida 4X4 del cuadrado malla de alambre de acero inoxidable de 100 micrones
Diámetro del alambre:	Requisito	Ancho:	El generalmente 1M
Correo electrónico:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Resaltar:	20 mesh stainless steel wire mesh , 40 mesh woven steel net , 60 mesh high standard wire mesh

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh

Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.It is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing.In recent years, stainless steel net is widely used in many different fields.

1. Most of our products are customized products, please contact us for the latest factory quotation.

2. Materials, specifications, packaging, pictures, logo can be customized.

3. Freight charges need to be calculated in detail according to your country and region, the quantity/volume of the goods and the mode of transportation. Please contact us for more details.

Stainless Steel Wire Mesh

Mesh number: 1 mesh--3500 mesh.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Product Name	Stainless Steel Weave Wire Mesh
Weaving Process	Plain weave; Twill weave; Five-heddle weave;Plain dutch weave;Twill dutch weave;Reverse Twill dutch weave
Wire diameter	Common:0.2-2.5mm
Mesh Count	Common:1-3500mesh.ect
Width	1m,1.2m,1.5m, other can be customized
Length	30m,60m,other can be customized
Finished product	Regular: roll, can be cut into pieces
Packing	Paper tube, moisture-proof bag, wooden box or pallet packing
Customization	Our factory can design and produce various types of products according to user needs

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

4. Specifications mesh count of SUS 316L wire mesh

WEAVE	MESH COUNT	WIRE DIA. IN INCHES	WIRE DIA. IN MM	WIDTH OF OPENING IN INCHES	% OF OPEN AREA	WEIGH PER Square Meter(KG)	OPENING IN MICRON
PLAIN	2×2	0.063	1.6002	0.437	76.4	2.56	11119
PLAIN	3×3	0.054	1.3716	0.279	70.1	2.82	7099
PLAIN	4×4	0.047	1.1938	0.203	65.9	2.85	5165
PLAIN	5×5	0.047	1.1938	0.153	58.5	3.56	3893
PLAIN	5×5	0.041	1.0414	0.159	63.2	2.71	4046
PLAIN	6×6	0.041	1.0414	0.126	57.2	3.25	3206
PLAIN	6×6	0.035	0.889	0.132	62.7	2.37	3359
PLAIN	6×6	0.032	0.8128	0.135	65.6	1.98	3435
PLAIN	8×8	0.028	0.7112	0.097	60.2	2.02	2468
PLAIN	8×8	0.025	0.635	0.1	64	1.61	2545
PLAIN	10×10	0.047	1.1938	0.053	28.1	7.13	1349
PLAIN	10×10	0.041	1.0414	0.059	34.8	5.42	1501
PLAIN	10×10	0.028	0.7112	0.072	51.8	2.53	1832
PLAIN	10×10	0.025	0.635	0.075	53.3	2.02	1908
PLAIN	10×10	0.023	0.5842	0.077	59.3	1.71	1959
PLAIN	12×12	0.023	0.5842	0.06	51.8	2.05	1527
PLAIN	12×12	0.02	0.508	0.063	57.2	1.55	1603
PLAIN	14×14	0.023	0.5842	0.048	45.2	2.39	1221
PLAIN	14×14	0.02	0.508	0.051	51	1.81	1298
PLAIN	14×14	0.018	0.4572	0.053	55.1	1.46	1349
PLAIN	16×16	0.02	0.508	0.0425	46.2	2.06	1081
PLAIN	16×16	0.018	0.4572	0.0445	50.7	1.67	1132
PLAIN	16×16	0.016	0.4064	0.0465	55.4	1.32	1183
PLAIN	18×18	0.018	0.4572	0.0376	45.8	1.88	957
PLAIN	18×18	0.017	0.4318	0.0386	48.3	1.68	982
PLAIN	20×20	0.016	0.4064	0.034	46.2	1.65	865
PLAIN	20×20	0.015	0.381	0.035	49	1.45	891
PLAIN	24×24	0.015	0.3556	0.0277	44.2	1.52	705
PLAIN	24×24	0.013	0.3302	0.0287	47.4	1.31	730
PLAIN	30×30	0.013	0.3302	0.0203	37.1	1.64	517
PLAIN	30×30	0.012	0.3048	0.0213	40.8	1.39	542
PLAIN	30×30	0.011	0.2794	0.0223	44.8	1.17	567
PLAIN	35×35	0.012	0.3048	0.0166	33.8	1.63	422
PLAIN	35×35	0.011	0.2794	0.0176	37.9	1.37	448
PLAIN	40×40	0.012	0.3048	0.013	27	1.86	331
PLAIN	40×40	0.011	0.2794	0.014	31.4	1.56	356
PLAIN	40×40	0.01	0.254	0.015	36	1.29	382
PLAIN	40×40	0.0095	0.2413	0.0155	38.4	1.16	394
PLAIN	40×40	0.009	0.2286	0.016	41	1.05	407
PLAIN	50×50	0.009	0.2286	0.011	30.3	1.31	280
PLAIN	50×50	0.0085	0.2159	0.0115	33.1	1.17	293
PLAIN	50×50	0.008	0.2032	0.012	36	1.03	305
PLAIN	60×60	0.0075	0.1905	0.0092	30.5	1.09	234
PLAIN	60×60	0.007	0.1778	0.0097	33.9	0.95	247
PLAIN	60×60	0.0065	0.1651	0.0102	37.5	0.82	260
PLAIN	60×60	0.006	0.1524	0.0107	41.2	0.70	272
PLAIN	60×60	0.0045	0.1143	0.0122	53.3	0.39	310
PLAIN	70×70	0.0065	0.1651	0.0078	29.8	0.95	198
PLAIN	70×70	0.0037	0.09398	0.016	54.9	0.31	407
PLAIN	80×80	0.0055	0.1397	0.007	31.4	0.78	178
PLAIN	80×80	0.005	0.127	0.0075	36	0.65	191
PLAIN	80×80	0.0037	0.09398	0.0088	49.6	0.35	224
PLAIN	100×100	0.0045	0.1143	0.0055	30.3	0.65	140
PLAIN	100×100	0.004	0.1016	0.006	36	0.52	153
PLAIN	120×120	0.0037	0.9398	0.0046	30.7	0.53	117
PLAIN	120×120	0.0026	0.06604	0.0058	47.3	0.26	148
PLAIN	150×150	0.0026	0.06604	0.0041	37.4	0.33	104
PLAIN	180×180	0.0023	0.05842	0.0033	34.7	0.31	84
PLAIN	200×200	0.0021	0.05334	0.0029	33.6	0.28	74
PLAIN	200×200	0.0021	0.004064	0.0034	46.2	0.17	87
PLAIN	230×230	0.0014	0.03556	0.0029	46	0.15	74
PLAIN	250×250	0.0016	0.04064	0.0024	36	0.21	61
PLAIN	270×270	0.0016	0.04064	0.0021	32.2	0.22	53
PLAIN	300×300	0.0015	0.0381	0.0018	29.7	0.22	46
PLAIN	325×325	0.0014	0.03556	0.0017	30	0.21	43
PLAIN	400×400	0.0011	0.02794	0.0014	31.4	0.16	36
PLAIN	500×500	0.001	0.0254	0.001	25	0.16	25
PLAIN	550×550	0.00086	0.021844	0.0008	22.4	0.13	24
TWILL	250×250	0.0016	0.04064	0.0024	36	0.21	61
TWILL	270×270	0.0016	0.04064	0.0021	32.2	0.22	53
TWILL	300×300	0.0015	0.381	0.0018	29.7	0.22	46
TWILL	325×325	0.0014	0.03556	0.0017	30	0.21	43
TWILL	400×400	0.0011	0.02794	0.0014	31.4	0.16	36
TWILL	500×500	0.001	0.0254	0.001	25	0.16	25
TWILL	550×550	0.00086	0.021844	0.0008	22.4	0.13	24
TWILL	635×635	0.0008	0.02	0.0008	25	0.127	20

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh 1

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh 2

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh 3

20/40/60 Mesh Woven Steel Net High Standard Stainless Steel Wire Mesh 4
