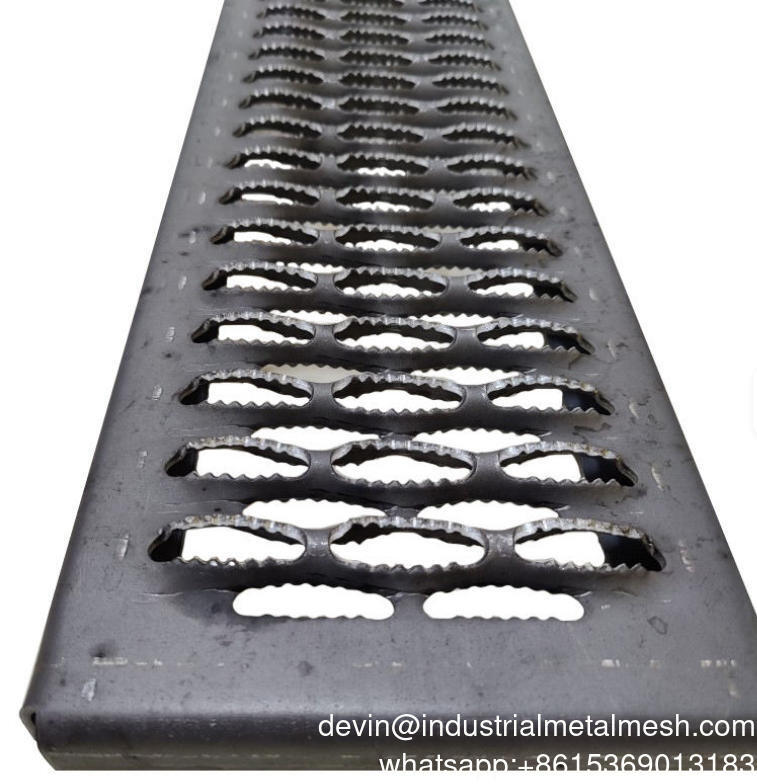

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk

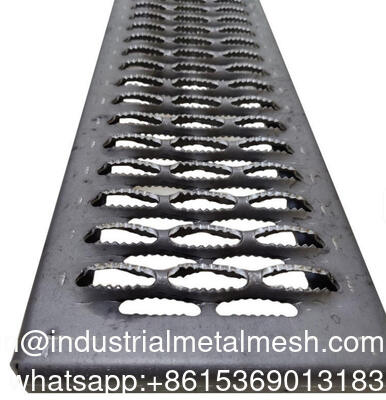

Ampliación de imagen : Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk

Datos del producto:

Lugar de origen:	Hebei, China
Nombre de la marca:	QIJIE
Certificación:	iso
Número de modelo:	reja del puntal del apretón

Pago y Envío Términos:

Cantidad de orden mínima:	100 piezas
Detalles de empaquetado:	Palets
Tiempo de entrega:	15-18 días
Condiciones de pago:	30%TT por adelantado, equilibrio antes de cargar
Capacidad de la fuente:	1000PCS por mes

Contacto

Descripción detallada del producto

Material:	Alambre de acero de aluminio, galvanizado	Nombre de los productos:	reja del puntal del apretón
Tipo:	Malla perforada, grabando al agua fuerte o sellando	Técnica:	Perforado
Estilo de tejido:	perforado, perforado, perforando	Forma del agujero:	Ronda, diamante, etc, flor del ciruelo, octagonal
Tratamiento superficial:	Rocíe la capa/la pintura/la capa a pistola, caliente sumergidos galvanizado, galvanizados y el fluor	Color:	Todo el microprocesador del color tiene, blanco, azul, de plata, de oro
Nombre del producto:	hoja de metal perforada hexagonal, malla extensible del sdiamond	Espesor:	0.5-8m m, 0.3MM- 8M M
Característica:	Resistencia a la corrosión, buena calidad y buena calidad, duradera, resistencia al ácido, anti-resi	Ancho:	1m o 1.22m, 1,22 m o abajo
Uso:	etc., decorativo, filtro del aceite/aire, comida	Longitud:	2m o 2.44m
Tamaño:	Tamaño personalizado, estándar	Forma:	el cuadrado, se puede cortar en la forma redonda o cuadrada, forma redonda, óvalo, hexágono
Paso:	el 1.0mm-100MM, o como petición.	Correo electrónico:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Resaltar:	serrated stainless steel grip strut grating , aluminum mesh safety sidewalk grating , stainless steel grip strut with warranty

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk

Product Description

The perforated crocodile mouth grip strut grating is a metal anti-skid plate with a raised tooth-shaped hole structure made of iron plate, stainless steel plate or aluminum plate as the base material through CNC punching technology. Its production process covers shearing, punching and bulging, bending and welding, etc.
The hole shape includes crocodile mouth shape, herringbone shape and round shape, and the serrated edge design effectively improves the anti-slip effect.
The plate thickness can be customized in the range of 1-5mm, and the bending angle is adjusted according to the installation scenario. Common edge treatment methods include flat edge and bent edge.
The product has the characteristics of rust resistance, corrosion resistance, strength and durability. It is widely used in outdoor platforms of industrial facilities such as sewage treatment plants and power plants, as well as vehicle anti-slip pedals, stair treads and other scenarios.

1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

Product Features
Product Name	Anti Skid Perforated Slip-Resistant safety grating walkway grip strut
Hole type	Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled
Width	Max 1250mm
Length	Max 6000mm
Bend Depth	50+20mm 35+20mm 75+20mm customized
MOQ	20pcs
Special Services	Site CAD Drawing , Free Samples , Installation Guide , Solid Packages
Loading Port	Tian Jin Port or Any Chinese Port

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk 1

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk 2

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk 3

Features

Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

Applications

Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

Serrated Surface Stainless Steel Aluminum Mesh Safety Grating Grip Strut Sidewalk 5

Advantages

1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
