OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating

Ampliación de imagen : OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating

Datos del producto:

Lugar de origen:	Hebei, China
Nombre de la marca:	QIJIE
Certificación:	iso
Número de modelo:	reja del puntal del apretón

Pago y Envío Términos:

Cantidad de orden mínima:	100 piezas
Detalles de empaquetado:	Palets
Tiempo de entrega:	15-18 días
Condiciones de pago:	30%TT por adelantado, equilibrio antes de cargar
Capacidad de la fuente:	1000PCS por mes

Contacto

Descripción detallada del producto

Material:	Alambre de acero de aluminio, galvanizado	Nombre de los productos:	reja del puntal del apretón
Tipo:	Malla perforada, grabando al agua fuerte o sellando	Técnica:	Perforado
Estilo de tejido:	perforado, perforado, perforando	Forma del agujero:	Ronda, diamante, etc, flor del ciruelo, octagonal
Tratamiento superficial:	Rocíe la capa/la pintura/la capa a pistola, caliente sumergidos galvanizado, galvanizados y el fluor	Color:	Todo el microprocesador del color tiene, blanco, azul, de plata, de oro
Nombre del producto:	hoja de metal perforada hexagonal, malla extensible del sdiamond	Espesor:	0.5-8m m, 0.3MM- 8M M
Característica:	Resistencia a la corrosión, buena calidad y buena calidad, duradera, resistencia al ácido, anti-resi	Ancho:	1m o 1.22m, 1,22 m o abajo
Uso:	etc., decorativo, filtro del aceite/aire, comida	Longitud:	2m o 2.44m
Tamaño:	Tamaño personalizado, estándar	Forma:	el cuadrado, se puede cortar en la forma redonda o cuadrada, forma redonda, óvalo, hexágono
Paso:	el 1.0mm-100MM, o como petición.	Correo electrónico:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Resaltar:	OEM Tec-Sieve grip strut grating , perforated metal walkway grating , safety catwalk grating with warranty

OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating

Product Description

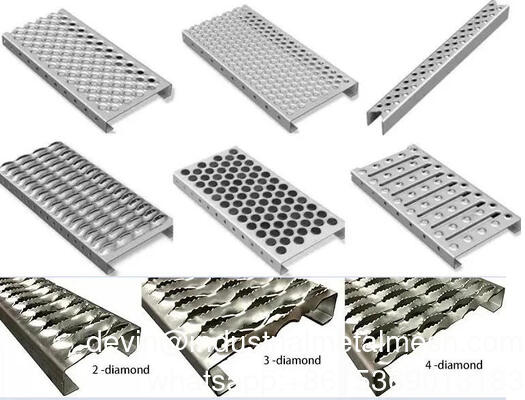

Grip Strut Safety Grating, also called Grip-Span Grating, is a multifunctional, one-piece, plank-type grating panel.
Grip Strut Safety Grating is made out of a single plate of carbon steel, galvanized steel, stainless steel or aluminum alloy, which forms both the non-slip diamond shaped openings, serrated surface, and the load-supporting continuous channel at either side.
In terms of Grip Strut Safety Grating, maximum slip resistance in all directions is provided by a heavily serrated, diamond matrix walking surface that enhances workplace safety.

Grip Strut Safety Plank Grating Advantages

√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain

1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

Product Features
Product Name	Anti Skid Perforated Slip-Resistant safety grating walkway grip strut
Hole type	Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled
Width	Max 1250mm
Length	Max 6000mm
Bend Depth	50+20mm 35+20mm 75+20mm customized
MOQ	20pcs
Special Services	Site CAD Drawing , Free Samples , Installation Guide , Solid Packages
Loading Port	Tian Jin Port or Any Chinese Port

OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating 1

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating 2

OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating 3

Features

Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.

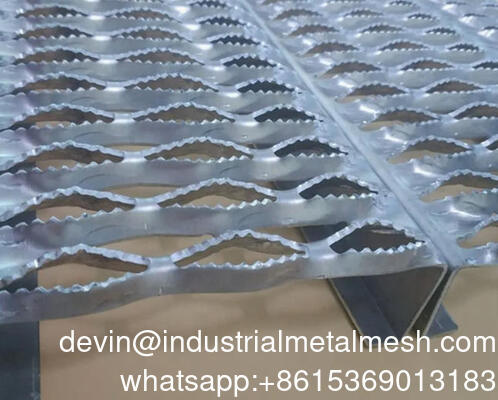

Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

Applications

Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating 5

Advantages

1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
