1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh

Certificación
CHINA Hebei Qijie Wire Mesh MFG Co., Ltd certificaciones
CHINA Hebei Qijie Wire Mesh MFG Co., Ltd certificaciones
Comentarios de cliente
Hemos recibido sí la malla de refuerzo y somos bastante felices con la calidad. ¡Muchas gracias! Chris

—— Chris Johnson

He estado pidiendo la malla cubierta polvo de la pantalla de la mosca de T 316 de Qijie; a diferencia de otros, nunca cortan órdenes y me suministran siempre el material de la calidad.

—— Jr. Venida de Michael

Tenía experiencia de compra muy mala con el proveedor anterior, porque posponen siempre tiempo del envío. A mi entusiasmo, Qijie es siempre puntual.

—— Susan Miller

Su producto bueno

—— Jatuporn Tae-Ngug

Estoy en línea para chatear ahora

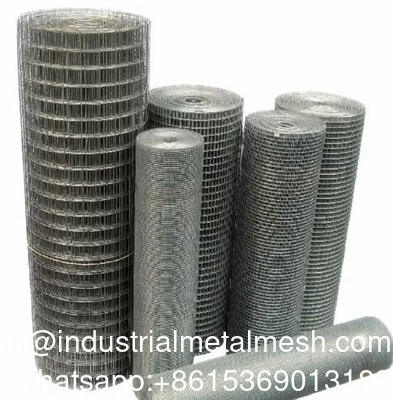

1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh

1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh
1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh

Ampliación de imagen :  1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: QiJie
Certificación: ISO9001:2008, SGS, CE
Número de modelo: 01WWM
Pago y Envío Términos:
Cantidad de orden mínima: 50 rollos
Precio: USD9.90-USD45.90
Detalles de empaquetado: Película de plástico o papel impermeable
Tiempo de entrega: 10-25 días
Condiciones de pago: TT, LC,
Capacidad de la fuente: 1000 rollos por día
Descripción detallada del producto
Material: alambre de acero al carbono Apertura de malla: 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Diámetro del alambre: 0.4m m - 1.5m m Ancho del rollo: los 0.4m, los 0.5m, los 0.6m, los 0.8m, el 1.0m, el 1.25m, el 1.5m, los 2.0m
Longitud del rollo: el 15M, los 30M, ect de los 50M Tratamiento superficial: Caliente sumergido galvanizado o eléctrico galvanizado
Número de modelo: Se trata de: Solicitud:: Malla de la valla
Correo electrónico: devin@industrialmetalmesh.com Whatsapp: +8615369013183
Resaltar:

galvanized welded wire mesh

,

1/4 inch square wire mesh

,

2 inch galvanized mesh

1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh​

Product Description:

Welded wire mesh is a metal wire screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

Welded wire mesh can be supplied in rolls or panels and is widely applied in fencing systems, enclosures, reinforcement works, safety protection, shelving, partitions, animal containment, and general construction projects. Its versatility and uniform structure make it suitable for agricultural, industrial, and commercial applications.

 - Hot-dipped Galvanized Welded Wire Mesh (HDG)
Hot-dipped galvanized welded wire mesh is produced from low carbon steel wire such as Q195 or Q235, with zinc coating applied after welding.
This process provides a thicker zinc layer and stronger corrosion resistance, making it suitable for long-term outdoor use, fencing systems, and harsh environments.

- Electro Galvanized Welded Wire Mesh (EG)
Electro galvanized welded wire mesh is made from low carbon steel wire, typically Q195, with zinc coating applied by electroplating.
It features a smooth and bright surface with basic rust protection, suitable for indoor use or light outdoor applications.

- PVC Coated Welded Wire Mesh
PVC coated welded wire mesh is manufactured from galvanized welded mesh and then coated with PVC.
The PVC layer provides additional corrosion resistance, color options, and longer service life, commonly used for garden fencing, poultry enclosures, and decorative fencing.

- Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is produced from 304 or 316 stainless steel wire, offering excellent corrosion resistance, strength, and hygiene performance.
It is suitable for industrial, food-related, chemical, and high-end applications.

Opening
Wire Diameter
Inch
metric Unit(mm)
1"x1"
25mmx25mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x2"
50mmx50mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x3"
50mmx70mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"
50mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"
50mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
2"x8"
50mmx200mm
6.0mm,5.0mm,4.0mm,3.0mm
3"x3"
75mmx75mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"
75mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"
100mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm
5"x5"
125mmx125mm
6.0mm,5.0mm,4.0mm,3.0mm
6"x6"
150mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
Note:Special specification can be made according to customers requires



The Types Of Welded Wire Mesh:

Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.



Characteristics of stainless steel 304D

1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe


Welded wire mesh is designed to provide structural strength, dimensional accuracy, and long service life. The welding process ensures each intersection is firmly bonded, resulting in a rigid mesh that maintains its shape under load and during installation.

Compared with woven wire mesh, welded wire mesh offers higher rigidity and easier installation, making it suitable for large-area applications and standardized construction projects.

- Strong welded intersections ensure stable structure
- Uniform mesh opening for consistent performance
- Flat surface, easy to cut, bend, and install
- Available in rolls or panels for different applications
- Suitable for various surface treatments and environments

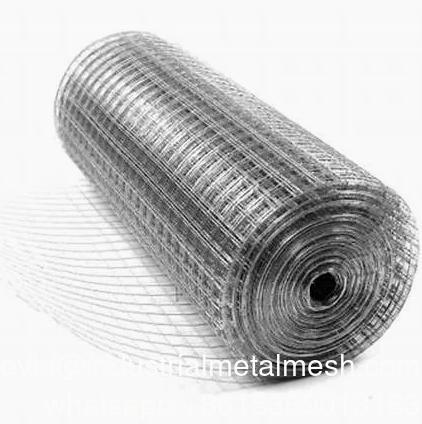

1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 0

Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable



Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.


1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 1 1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 2

1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 3 1/4inch 1/2inch 1inch 2 Inch Square Mesh Galvanized Welded Wire Mesh 4

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
