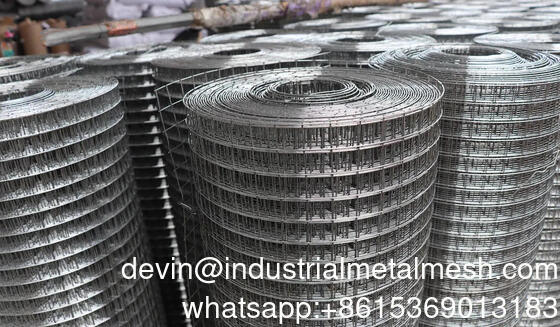

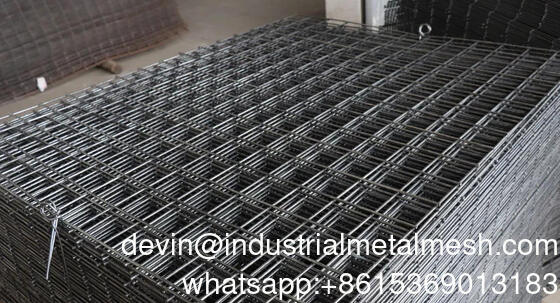

Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
| Tolerances on Mesh Dimensions |
| Mesh Dimensions(mm) |
Tolerance(mm) |
| < 50 |
±2.0 |
| ≥50 to < 200 |
±3.0 |
| Mesh Size and Wire Diameter |
| Mesh Size |
Wire Diameter Before & After PVC Coat |
| mm |
inch |
BWG No. |
Before Coated (mm) |
After Coated (mm) |
| 6.4 |
1/4 |
24-22 |
0.56-0.71 |
0.90-1.05 |
| 9.5 |
3/8 |
23-19 |
0.64-1.07 |
1.00-1.52 |
| 12.7 |
1/2 |
22-16 |
0.71-1.65 |
1.10-2.20 |
| 15.9 |
5/8 |
21-16 |
0.81-1.65 |
1.22-2.30 |
| 19.1 |
3/4 |
21-16 |
0.81-1.65 |
1.24-2.40 |
| 25.4 × 12.7 |
1 × 1/2 |
21-16 |
0.81-1.65 |
1.24-2.42 |
| 25.4 |
1 |
21-14 |
0.81-2.11 |
1.28-2.90 |
| 38.1 |
1 1/2 |
19-14 |
1.07-2.11 |
1.57-2.92 |
| 25.4 × 50.8 |
1 × 2 |
17-14 |
1.47-2.11 |
2.00-2.95 |
| 50.8 |
2 |
16-12 |
1.65-2.77 |
2.20-3.61 |
| Welded Wire Mesh Roll Size |
| Mesh Inch |
Width × Length |
| 1/2 |
3 ft. × 50 ft. |
| 1/2 |
4 ft. × 50 ft |
| 1/2 |
5 ft. × 50 ft. |
| 1/2 |
6 ft. × 50 ft. |
| 3/4 |
3 ft. × 50 ft |
| 3/4 |
4 ft. × 50 ft. |
| 3/4 |
5 ft. × 50 ft |
| 3/4 |
6 ft. × 50 ft. |
| 1 |
3 ft. × 50 ft. |
| 1 |
4 ft. × 50 ft. |
| 1 |
5 ft. × 50 ft. |
| 1 |
6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification |
| Mesh |
Wire Diameter |
| Expressed in Inches |
Millimeters |
Diameter |
Millimeters |
| 1" × 1" |
25 mm × 25 mm |
11 G - 14 G |
2 mm - 3 mm |
| 2" × 1" |
50 mm × 25 mm |
8 G - 14 G |
2 mm - 4 mm |
| 2" × 2" |
50 mm × 50 mm |
8 G - 14 G |
2 mm - 4 mm |
| 3" × 2" |
75 mm × 50 mm |
6 G - 14 G |
2 mm - 5 mm |
| 3" × 3" |
75 mm × 75 mm |
6 G - 14 G |
2 mm - 5 mm |
| 4" × 2" |
100 mm × 50 mm |
4 G - 14 G |
2 mm - 6 mm |
| 4" × 4" |
100 mm × 100 mm |
4 G - 14 G |
2 mm - 6 mm |
| 5" × 5" |
125 mm × 125 mm |
4 G - 14 G |
2 mm - 6 mm |
| 6" × 6" |
150 mm × 150 mm |
4 G - 14 G |
2 mm - 6 mm |
| Note: Special specifications can be customized. |
Detailed Photos
Product Parameters
| Specification |
| Opening |
Wire Diameter |
| Inch |
metric Unit(mm) |
| 1"x1" |
25mmx25mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" |
50mmx50mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" |
50mmx70mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" |
50mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" |
50mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" |
50mmx200mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" |
75mmx75mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" |
75mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" |
100mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" |
125mmx125mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" |
150mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: |
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request
|
Packaging & Shipping
1. in bulk
2. plastic film or woven on both of the sides
3. on pallet
4. customized
